沙灣古鎮 P2.0小間距全彩屏

當前位置:首頁 > 項目案例 > 經典案例 > 沙灣古鎮 P2.0小間距全彩屏

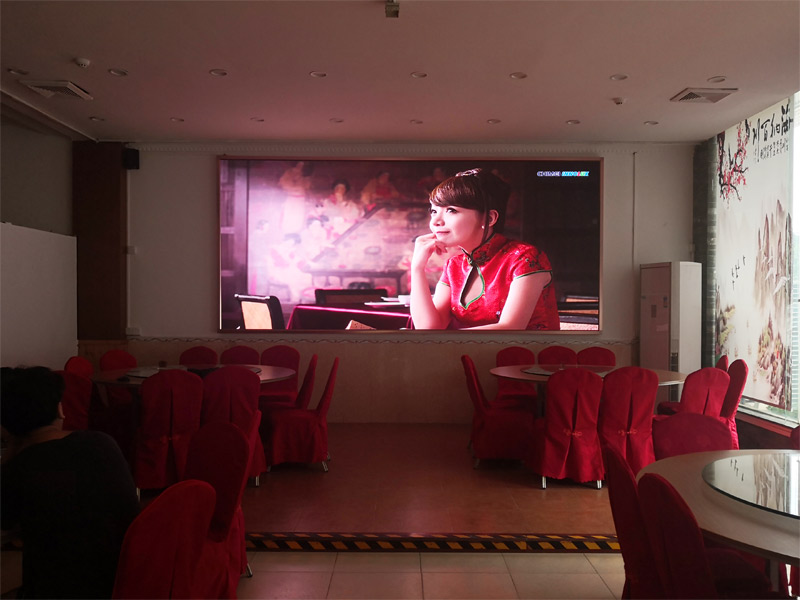

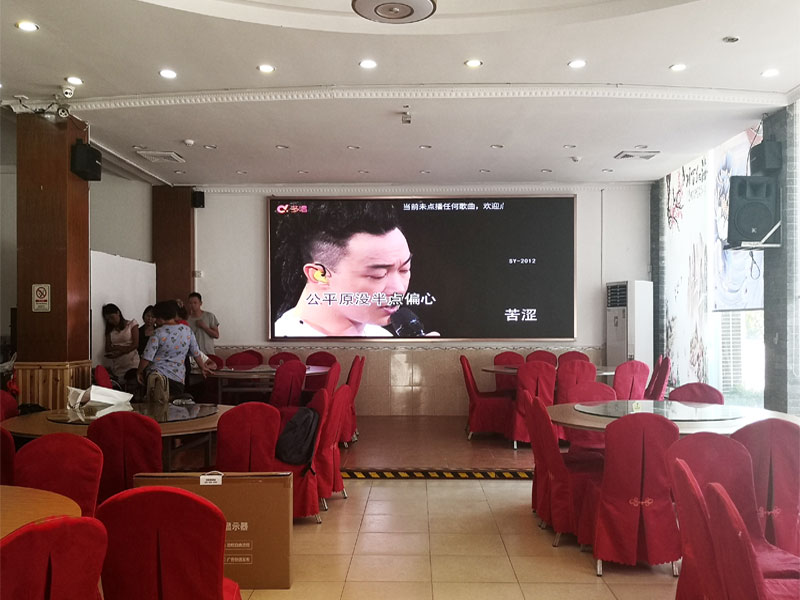

沙灣古鎮 P2.0小間距全彩屏

P2.0小間距全彩屏  4K效果高刷新



P2三合一表貼全彩

MAIN TECHNICAL PARAMETERS FOR INDOOR LED DISPLAY(PITCH2)

單元板參數

技術參數    Technical parameters

單位UNIT

參數值( parameters values

物理點間距  Pixel pitch

MM

2

模塊尺寸    Panel size

MM

L256*H128*T16

物理密度    Physical density

/M2

250000

像素基色    Pixel configuration

R/G/B

1,1,1

驅動方式    Driving method



1/32恒流掃描Constant current 1/32scan

LED封裝方式(LED Encapsulation

SMD

1515黑燈

顯示分辨率  Display resolution

DOTS

128X64=8192

模塊重量    Module weight

KG

0.20

模塊接口    Module port



HUB-HD75E

模塊工作電壓(Module working voltage

VDC

5

模塊功耗    Module consumption

W

15~20

屏體參數

模塊視角    Viewing angle

Deg.

140

最佳視距    Option distance

M

2-30

驅動器件    Driving device



2053/2038S

每平米模塊數(Every square metre module

PCS

30.5

最大功耗    Maximum power

W/ M2

610

換幀頻率    Frame Frequency

HZ/S

60

刷新頻率     Refresh frequency

HZ/S

2053/3480 , 2037/1920

白平衡亮度   Equilibrium brightness

CD/ M2

800~1000

工作環境溫度(Working environment temperature

0C

-10~60

工作環境濕度(Working environment humidity

RH

10%70%

 屏體工作電壓   Display working voltage

VAC

AC47~63HZ,220V±15%/110V±15%

白場色溫       Colour temperature



8500K-11500K

灰度/顏色      Gray scale/color



16.7M color

輸入信號       Input signal



RF\ S-Video\ RGB etc

控制系統       Control system



PCTV非線性卡nonlinearity card,DVI顯卡display card,Linsn control system,諾瓦

平均無故障時間 Mean free error time

HOURS

5000

壽命           Life

HOURS

100000

 雜點率         Lamp failure frequency



0.0001

抗干擾         Antijam



IEC801

安全           Safety



GB4793

抗電擊         Resist the electricity



1500V last 1min無擊穿及飛狐No breakdown

屏體重量       Steel box weight

KG/ M2

40(標準箱體standard steel box

漏電電流       Earth leakage current

mA



IP等級         IP rating



The back IP40,The front IP50

箱體尺寸(參考)(Steel box size

mm

L512Xh512x80
