模組規格書





MODULE SPECIFICATION



                                         廣州臻視特光電----luosiro.cn



編號(NO.: P06F01M-085S-V1.1      類型(Type:戶內模組indoor type

像素間距(Pitch:6mm                  LED規格(LED spec:SMD35283 IN 1

亮度(Brightness:1300 Nits



驅動方式(Driver fashion1/8掃 (1/8 Duty constant current

模組結構(Module structure:燈驅合一(Combined diver board

模組特點(Module Features)

6mm像素間距,R、GB三種顏色的晶片封裝在一個膠體內組成單個像素,混色性能較好,顯示密度高達27777pixels/sqm;

With the smaller pixel pitch, three vertically arranged of R G B lamp which constitute a single pixel makes better color performance and the density can reach 27777pixels/sqm.



32*32顯示分辨率、192mm*192mm模組尺寸,燈驅合一結構,可靠性高;

With the resolution of 32*32, module size of 192mm*192mm, the structure of combined driver board ensures the high reliability.

◆視角大,顯示圖象柔和,像素密度大,適合室內觀看;

With larger view angel, soft image, high definition which is suitable for indoor application.

◆超高亮、低衰減、高可靠性、一致性好、高耐候性;

With the features of super brightness、 low attenuation, high reliability good consistency and high weather ability.

效果無顆粒狀,勻色性較好,無馬賽克現象;

With the effect of non-granular, better color uniformity, non-mosaic phenomenon.

多層電路板結構設計,電流分布均勻,功耗小、散熱快,有效延長屏的壽命,可靠性高;

With the design of multi-layer circuit board makes the uniform of current distribution, quick heat dispelling, long life span and high reliability.

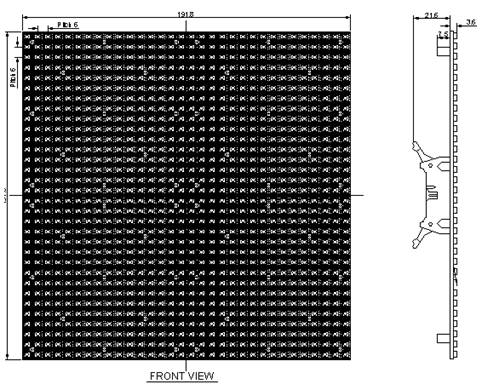

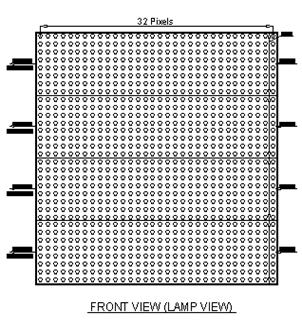

模組機械尺寸Module Dimensions

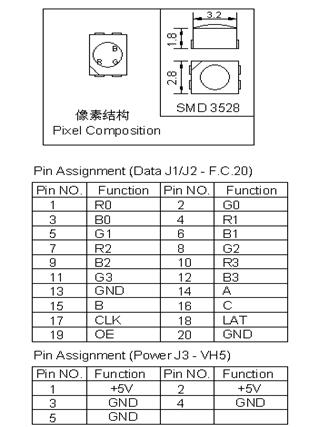

模組數據接口Module Data Interface

兩個模組的級聯(Two Modules Connection

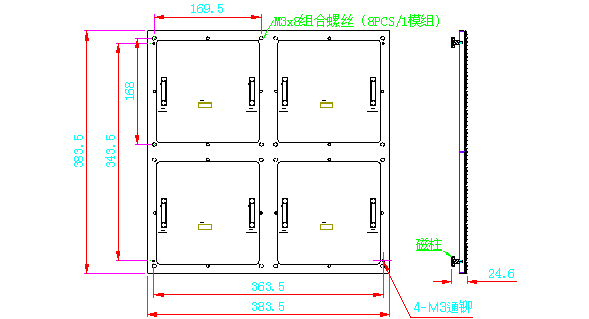

安裝方式Installation Fashion

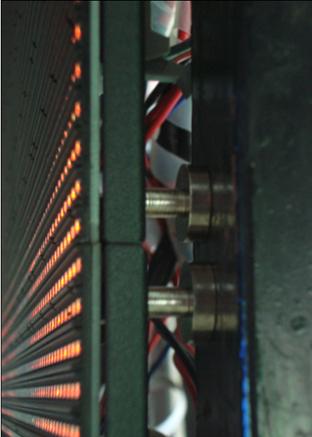

1.托架+磁鐵


一個托架裝4個模組(One Bracket Fixed Four Modules

采用磁鐵吸住固定架(Use Magnet Adsorbing

2.底殼+箱體安裝


主要技術指標Main Technical Parameters

參數parameters

單位 units

value

像素間距pixel pitch

mm

6

顯示分辨率display resolution

pixels

32×32

像素配置 pixel configuration

1R1G1B

物理密度 physical density

Pixels/sqm.

27777

驅動方式 driver mode

Duty

1/8

模組尺寸 module size

mm

192×192

灰度等級 gray scale

level

16384

亮度 brightness

Nits

1300

視角 viewing angle

°

H:120 V:100

最佳視距 optimal viewing distance

m

6

LED封裝 LED encapsulation

SMD 3528

LED 波長 LED wavelength

nm

R:625-630/G:520-525/B:465-470

驅動芯片 driver chip

16bits constant current

工作電壓 work voltage

V

5

功耗 power consumption

W

20

工作溫度 work temperature

0 - 45

壽命 life time

hours

100,000

重量 weight

g

310
