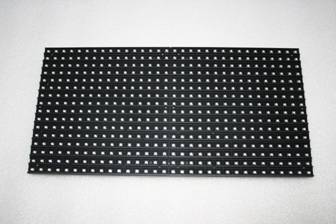

模組規格書
MODULE SPECIFICATION
編號(NO.): P7F01M-084S-V1.1 類型(Type):戶內模組(Indoor type )
像素間距(Pitch):7.62mm LED規格(LED spec):SMD3528
亮度(Brightness):1100Nits
驅動方式(Driver fashion):1/8掃 (1/8 Duty constant current)
模組結構(Module structure):燈驅合一(Combined diver board)
一模組特點(Module Features)
◆7.62mm像素間距,R、G、B三種顏色的晶片封裝在一個膠體內組成單個像素,混色性能較好,顯示密度高達17222pixels/sqm;
With the smaller pixel pitch, three vertically arranged of R G B lamp which constitute a single pixel makes better color performance and the density can reach 17222pixels/sqm.
◆32*16顯示分辨率、244mm*122mm模組尺寸,燈驅合一結構,可靠性高;
With the resolution of 32*16, module size of 244mm*122mm, the structure of combined driver board ensures the high reliability.
◆視角大,顯示圖象柔和,像素密度大,適合室內觀看;
With larger view angel, soft image, high definition which is suitable for indoor application.
◆超高亮、低衰減、高可靠性、一致性好、高耐候性;
With the features of super brightness, low attenuation, high reliability, good consistency、and high weather ability.
◆效果無顆粒狀,勻色性較好,無馬賽克現象;
With the effect of non-granular, better color uniformity, non-mosaic phenomenon.
◆多層電路板結構設計,電流分布均勻,功耗小、散熱快,有效延長屏的壽命,可靠性高;
With the design of multi-layer circuit board makes the uniform of current distribution, quick heat dispelling, long life span and high reliability.
二 模組機械尺寸(Module Dimensions)
三 模組數據接口(Module Data Interface)
四 主要技術指標(Main Technical Parameters)
參數parameters |
單位 units |
值value |
像素間距pixel pitch |
mm |
7.62 |
顯示分辨率display resolution |
pixels |
32×16 |
像素配置 pixel configuration |
1R1G1B | |
物理密度 physical density |
Pixels/sqm. |
17222 |
驅動方式 driver mode |
Duty |
1/8 |
模組尺寸 module size |
mm |
243.84×121.92 |
灰度等級 gray scale |
level |
16384 |
亮度 brightness |
Nits |
1100 |
視角 viewing angle |
° |
H:120 V:100 |
最佳視距 optimal viewing distance |
m |
8 |
LED封裝 LED encapsulation |
SMD3528 | |
LED 波長 LED wavelength |
nm |
R:625-630/G:520-525/B:465-470 |
驅動芯片 driver chip |
16bits constant current | |
工作電壓 work voltage |
V |
5 |
功耗 power consumption |
W |
25 |
工作溫度 work temperature |
℃ |
0-45 |
壽命 life time |
hours |
100,000 |
重量 weight |
g |
300 |
